How to control maximum reach into back of container

How to control maximum reach into back of container

Cube-IQ can be configured to control how far back it can reach when it begins loading at the start of a new sequence.

The load below illustrates where the orange boxes belonging to sequence 2 finished loading and where brown boxes belonging to sequence 1 started loading.

Orange boxes belonging to sequence 2 extends for 12 rows towards the front of the container at a height of 2 boxes per row where brown boxes belonging to sequence 1 begin loading on top of them. You may want all the orange boxes against each other instead of brown boxes getting stacked on top of them, Cube-IQ can be configured do so.

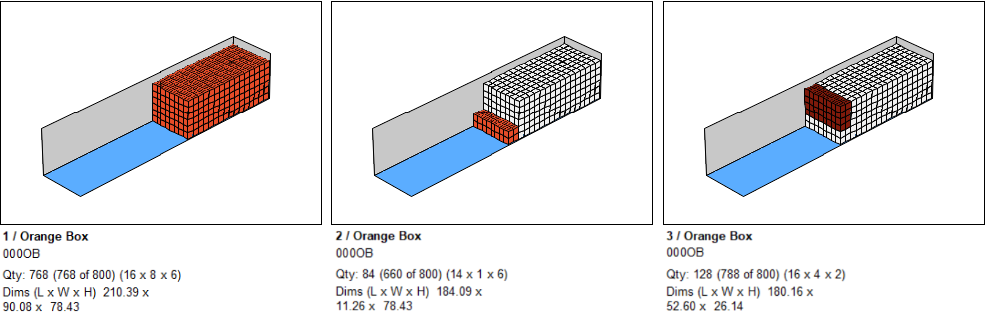

Here is the first three frames of the Load Plan where 128 orange boxes (16 x 4 x 2) are loaded in frame 3.

Use the maximum reach setting to control how far back the boxes belonging to sequence 1 can start loading after the boxes belonging to sequence 2 is complete.

The maximum reach setting can be changed by: 1) clicking Settings menu, 2) clicking the Operational Settings tab, and then 3) editing the Maximum reach field in the Other section.


The maximum reach setting of 1000 inches (above) in this case explains why the brown boxes belonging to sequence 1 was reaching over 12 rows of orange boxes stacked in twos.

Change the Maximum reach to 48 inches (4 feet) instead of 1,000 inches to ensure Cube-IQ stacks the orange boxes belonging to sequence 1 against each other instead of getting stacked closer to the front of the container.

Here below is the maximum reach setting changed to 48 inches.

And here are all the boxes belonging to sequence 2 loaded against each other after re-optimizing.


The Load Plan below now reflects how the orange boxes are loaded against each other in the first 2 frames followed by the brown boxes in frame 3.
