Overview
You can have a pallet automatically drawn under your containers.
Requirements
You must have any currently supported version of Cube-IQ installed on your computer with a valid license, or be logged in to Cube-IQ Web.
Procedure
Here are two containers with standard pallet dimensions of 48 x 40 inches: left image is default without pallet drawing, while the right image is illustrated with a 5 inch tall pallet.
Draw pallets by adding height to the outside dimensions and applying the "Set Up Pallet" feature
To add height to a container:
- Click the Outside Dims tab
- Enter the height of the pallet to draw under the container.
The example above will add 5 inches to height of container, and the 5 will also be used to configure pallet height if "Set Up Pallet" feature is applied.

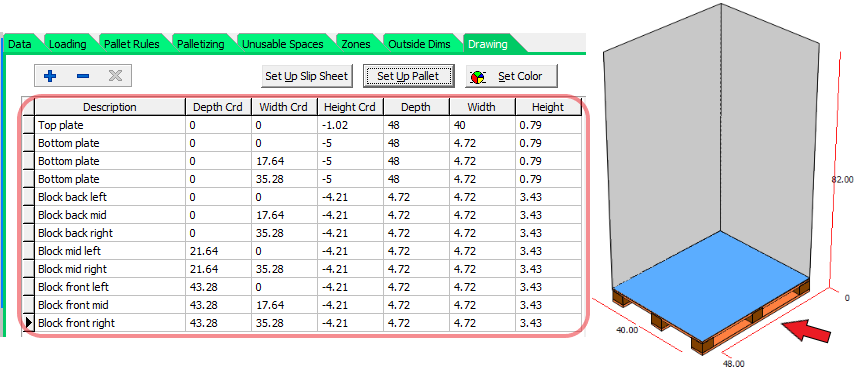

Now apply the "Set Up Pallet" feature to draw a 5 inch tall pallet under the container by:
Now apply the "Set Up Pallet" feature to draw a 5 inch tall pallet under the container by:
- Click Drawing tab
- Click "Set up Pallet" button
List of drawing instructions are automatically added.
The container is now drawn with a 5 inch pallet under the container.
