Overview
This article will provide instructions on how to install BlackBox 4. This should be used to replicate issues for customers who have not moved forward with our newer Cube-IQ and BlackBox 5 solutions.
Requirements
BlackBox4 is fully compatible with Windows XP/Vista/7/8/10 with the following system requirements:
| Hardware | Minimum | Recommended |
Processor |
Intel Pentium 4 or AMD Athlon x64 |
Intel Core i5 (2.66 GHz, Quad Core) or AMD FX (3.0 GHz, Octa Core) |
RAM |
1GB |
2GB to 8GB |
| Hard Disk Space | 40 GB hard drive with at least 15% free space |
250GB to 1TB |
Display |
1024x768 |
1024x768 to 2400x1200 |
Graphics |
16 bit (65535 colors) |
32 bit (16M colors, or True Color) |
- Attached zip file BB4.zip
Procedure
- Unzip attachment located below.
- Move into Windows C: drive.
- Open Command Prompt.
- Navigate to the BB4 folder.
- Run this command:
XYNTservice -i- You should see CubeIQBlackBox in your services if run correctly.

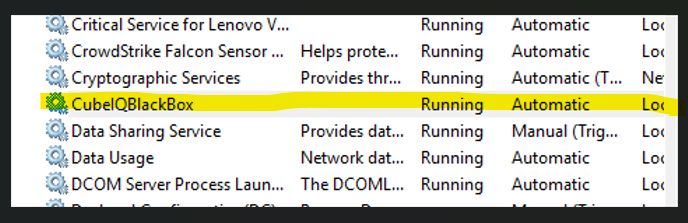

- You should see CubeIQBlackBox in your services if run correctly.
- Navigate to the BB4 folder.
- Open the XYNTservice.ini.
-
CommandLine and WorkingDir need to match the FilePath of where you moved the unzipped folder.
Assistance
If any further assistance is needed, please contact our Support team.
