How to Choose a Custom View in Reports

Overview

You can customize the loaded product view of reports. This will allow you to have a better viewing angle of the loaded products and containers.



Requirements

1. Blackbox is installed, and the service is running for it.
   1. How To Install BlackBox5
2. Download and install the Blackbox Gateway service.
   1. https://drive.google.com/file/d/1gaXNQaYULgLFznIl5iSIWTTOrg_EA6Iw/view?usp=sharing
3. Install, signup, and login to Postman Desktop App.
   1. https://www.postman.com/downloads

Procedure

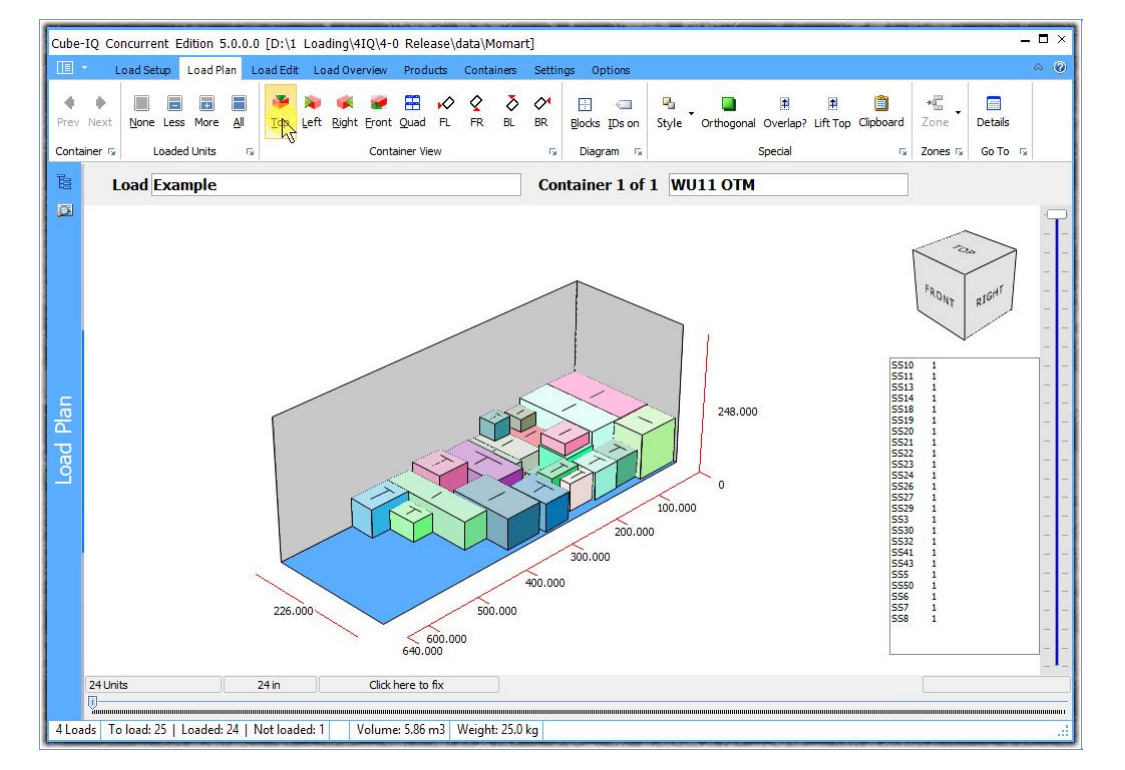

1. In the Load Plan, pick the viewing angle you prefer to see in the Reports.

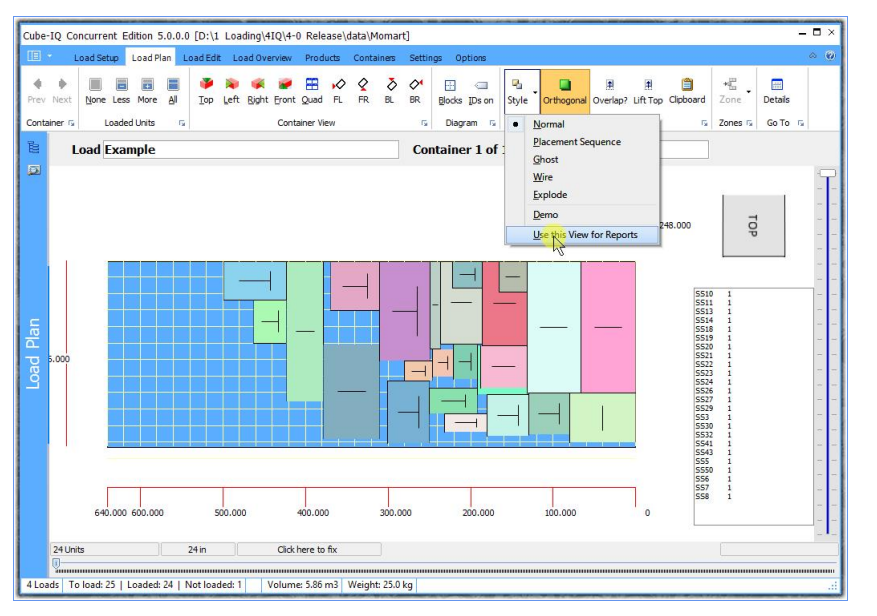

2. Under the Style button, choose Use this View for Reports.

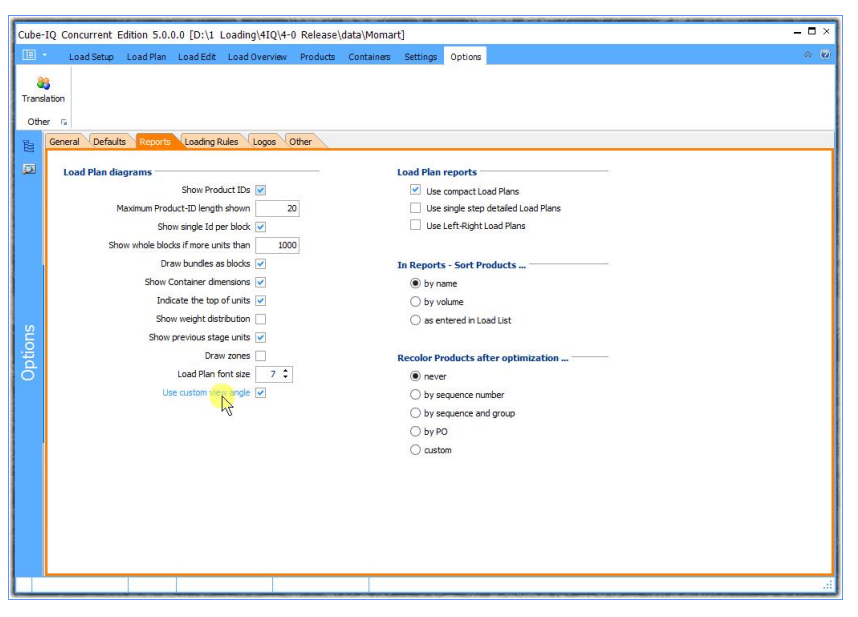

3. In the Options tab, check Use custom view angle.

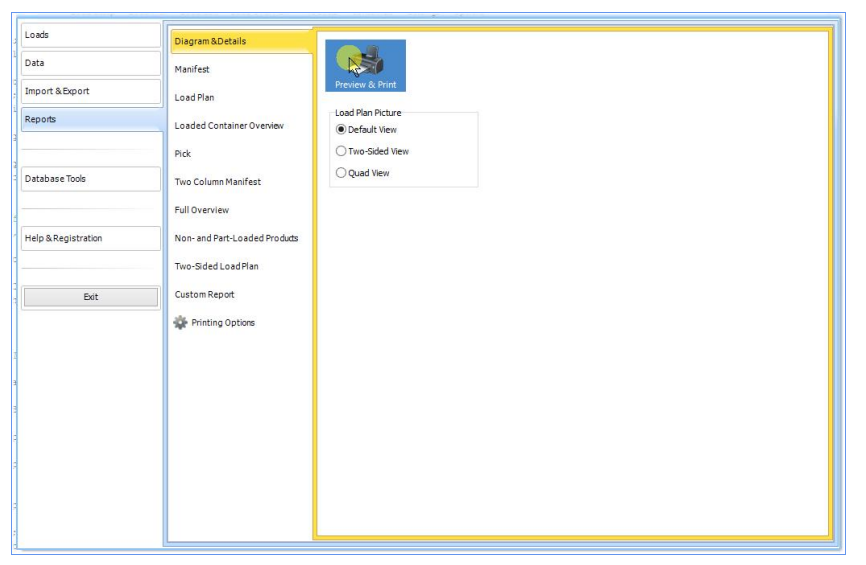

4. Run your preferred Report(s) as usual.

5. Your custom view angle will be shown as in the example below.

Assistance

If any further assistance is needed, please contact our Support team.
