Overview
When setting up a load in Cube-IQ, you can use the Load List Navigator to easily scroll through and find products that you've added to the load.
Requirements
- Any licensed and supported version of Cube-IQ.
- A load containing multiple products.
Product Information
Enabling the Load List Navigator

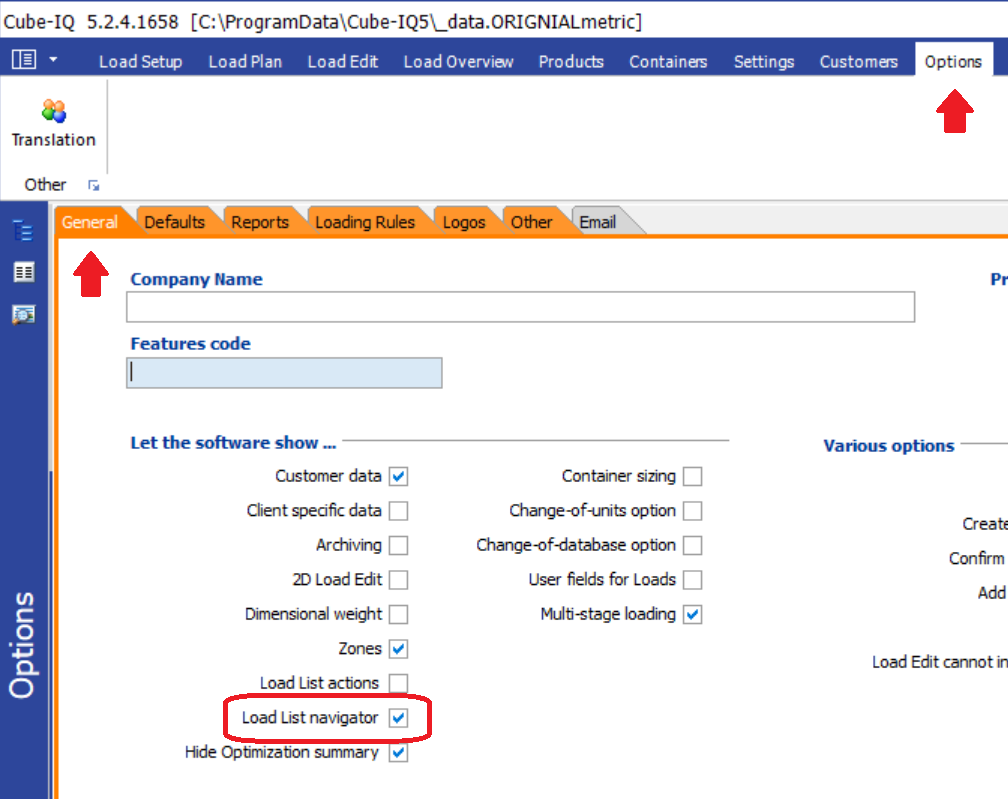

- Choose Options from the navigation bar at the top of the application window.
- Click the General tab.
-
Under Let the software show... make sure the box labeled Load List Navigator is checked.
- Return to the Load Setup view by clicking Load Setup in the navigation bar.

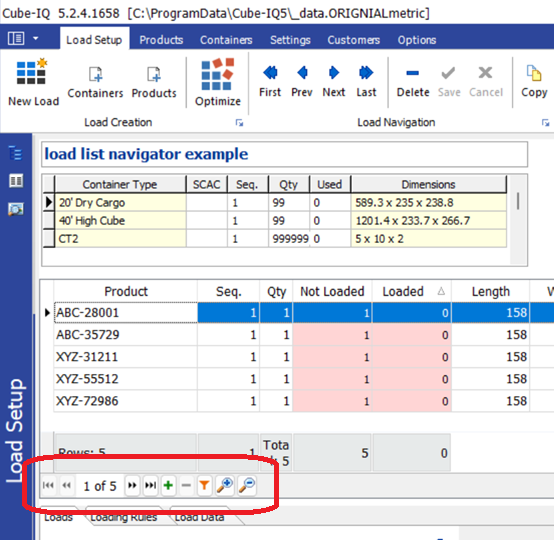

- You will see the Load List Navigator at the bottom of the product list.
Using the Load List Navigator
-
The arrows allow you scroll through the product list one product at a time.
-
The plus and minus signs.
- The plus (+) sign adds a blank row to the product list beneath the currently selected row.
- The minus (-) sign deletes the currently selected row from the product list.
-

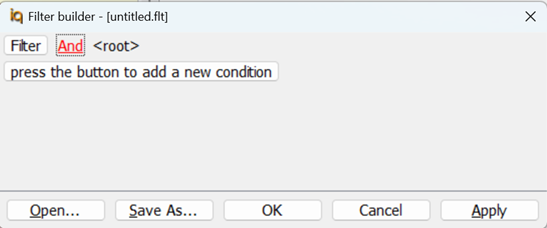

The filter icon opens the Filter Builder
- The Filter Builder allows you to query the product list and control which products are visible in the Load Setup area.
-

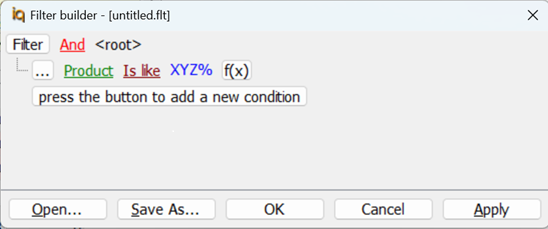

Here is the Filter Builder set to display products whose names begin with XYZ:
-

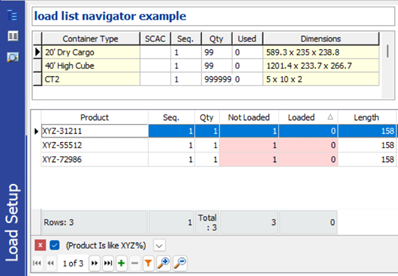

And here is the product list with only products showing which match the criteria:
-
The magnifying glasses with plus (+) and minus (-) signs on them allow you to adjust the size of the text in the product area.
Assistance
If any further assistance is needed, please contact our Support team.
