Overview
Cube-IQ offers multiple reporting options to help you communicate and share your loading results effectively. From the FILE tab, you can access the Reports section, where you can generate, preview, print, save, and email various types of reports.
Reports available include:
- Load Plans Report.
- Diagram and Details.
- Loaded Container Overview.
- Manifest.
Additional reports may be added in upcoming versions. Please contact MagicLogic if you have specific report requests.
Requirements
- Cube-IQ version 5.1 or later installed and running.
- An active load case available for generating reports.
Procedure

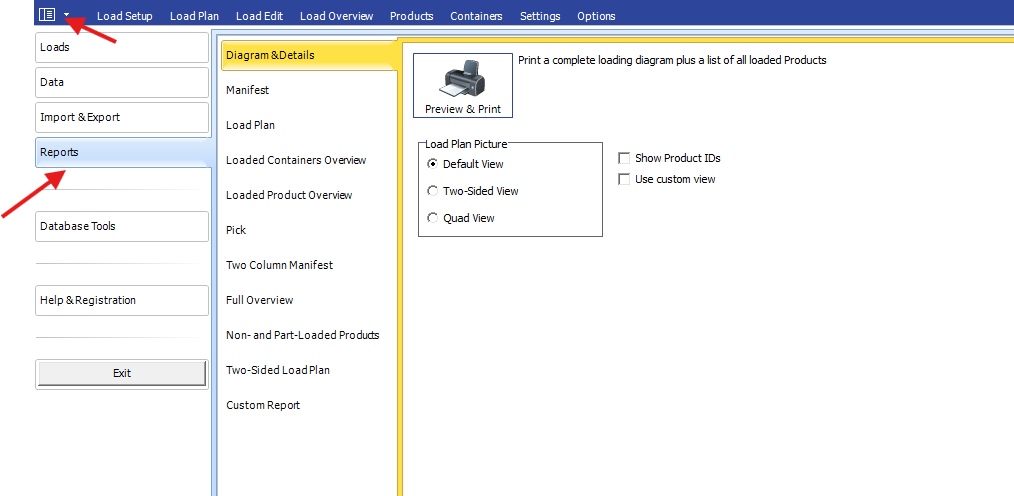

Accessing Reports
- Open Cube-IQ and load your project.
- Go to the FILE tab and select Reports.
- Choose the type of report you want to generate (i.e. Load Plan Report, Diagram and Details).
- The report will open in preview mode.

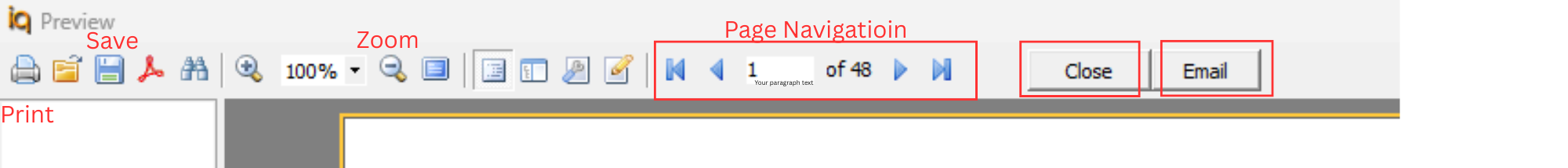

Using the Preview Toolbar
- Print: Opens the standard Windows Print Dialog for printing the report.
- Save As: Saves the report as a PDF file to your computer.
- Email: Opens your default email client with the report attached as a PDF.
- Zoom Options: Adjust view to fit, width, full page (100%), or set a custom zoom percentage.
- Page Navigation: Use the navigation buttons to go to the first, previous, next, or last page; view the current page number in the center.
- Close: Exit the preview window without printing or saving.
Assistance
If any further assistance is needed, please contact our Support team.
